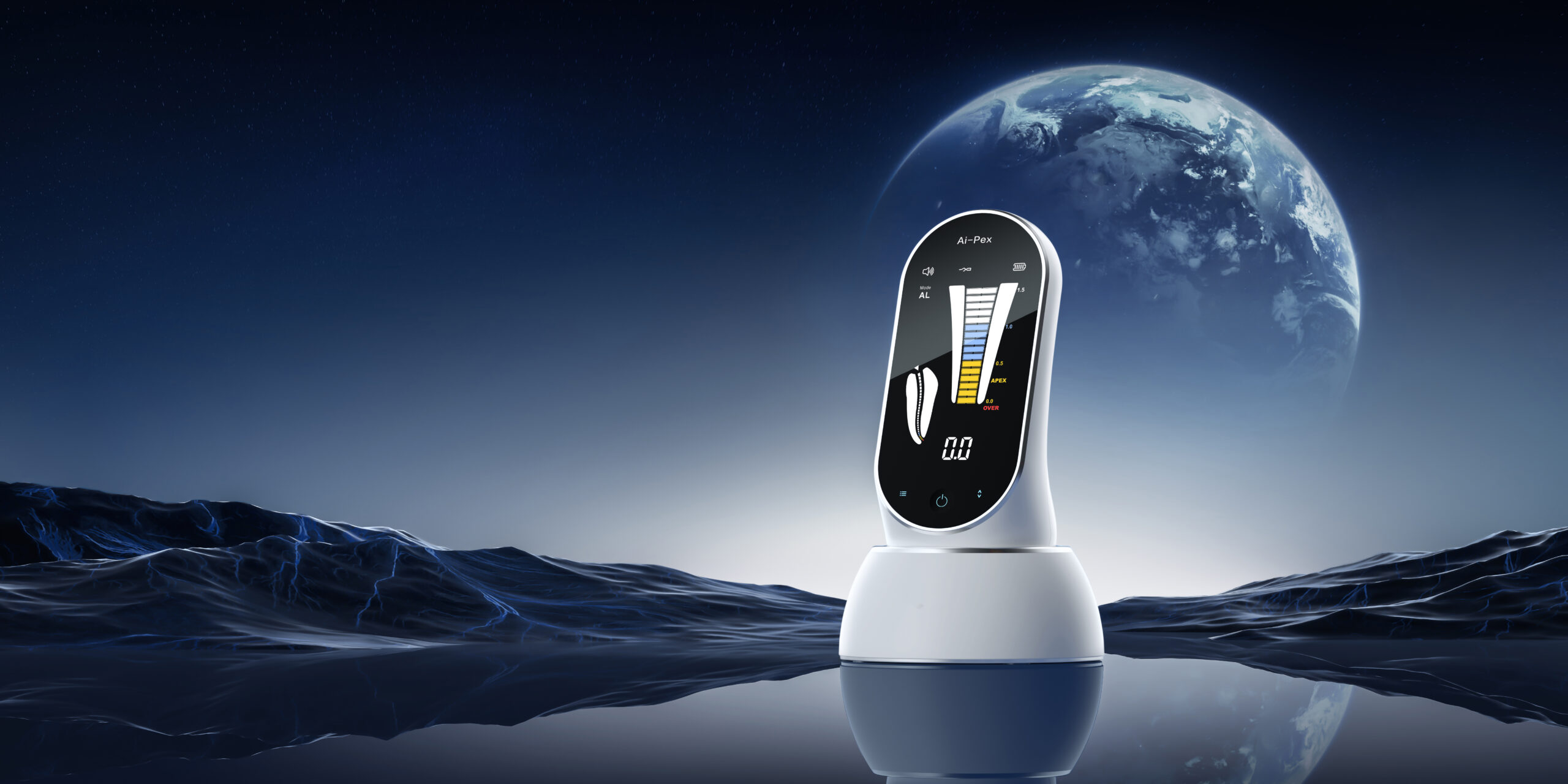

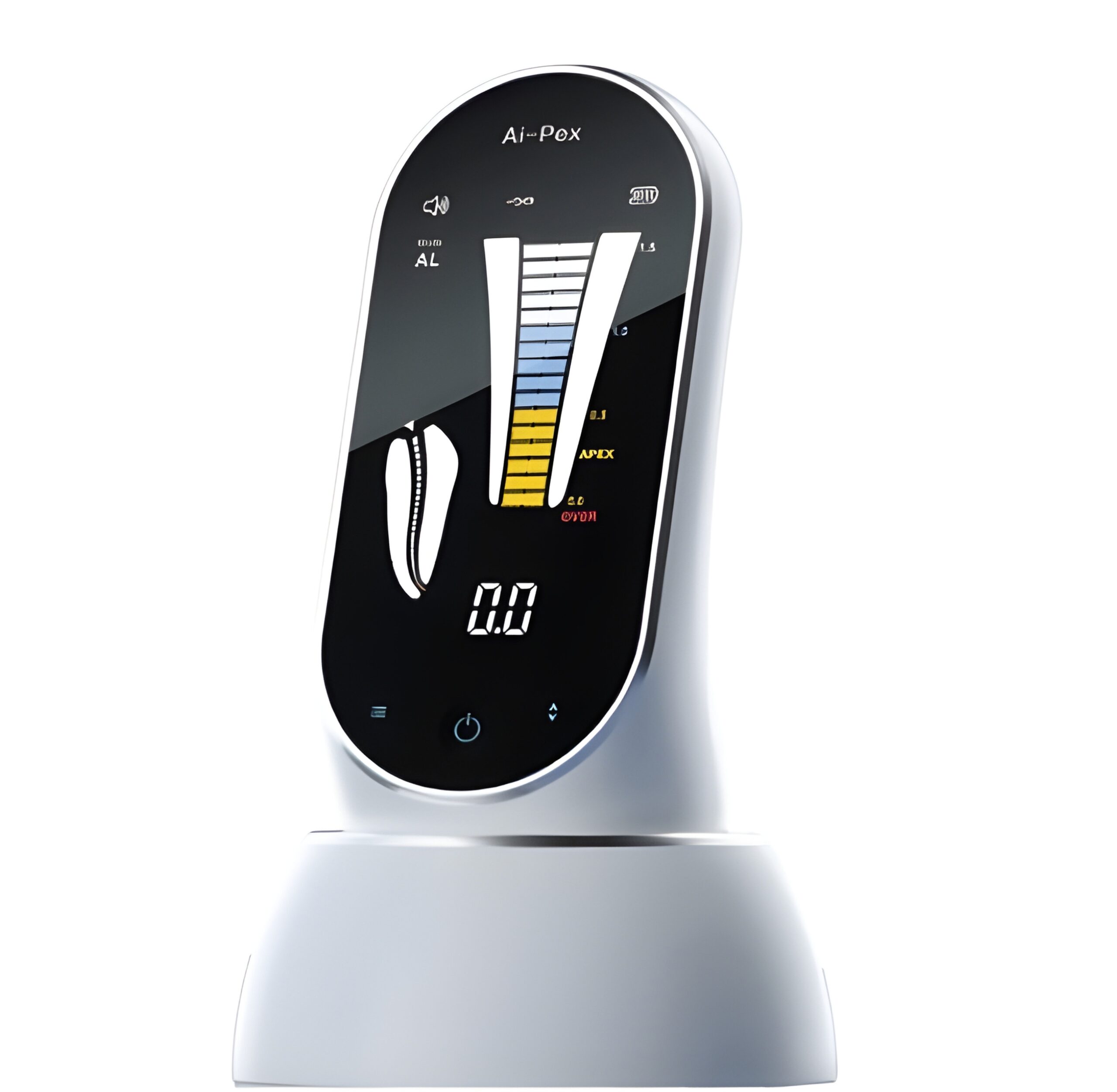

WOODPECKER AI-PEX (Standard Version)
The Woodpecker Ai-Pex is a high-precision apex locator that offers an impressive accuracy rate of up to 97.71%. This professional device features automatic start-up calibration to ensure that the unit is perfectly adjusted for every new canal exploration. It is designed to function accurately in the presence of blood or residual pulp, providing the clinician with stable readings in even the most challenging clinical environments.
| Durata della batteria | 5h and 20min |
| Tempo di ricarica | 3h |
| Consumo | ≤0.5W |
| Screen | 3.8 inch LCD |
| Batteria ricaricabile | 3.7V / 2000mAh |
Root Canal Length Measurement
Auto calibration after startup new digital circuit
US central processing chip with DSP processing module
0.1% high precision components,information processing speed increased by 2.125 times
Accurate Measurement Of Root Canallength
Lowered environment requirements for root canal length measurement
Suitable for various complex root canals
Unaffected by blood and residual pulp, whether the root canal is dry or wet, it can automatically and precisely determine the position of apical foramen.
Constant Current Source Electric Pulp Testing
When the clinical need to determine the vitality of the root pulp arises, electric pulp test must be used. In the case of thermal pulp test (cold & heat), the cold and heat stimuli can only reach the coronary pulp and cannot test the vitality of the root pulp.
Brief Introduction Of Icons In Electric Pulp Testing Function(PT Mode)
How To Use The Pulp Vitality Test Function:
·Long press the function button to switch to PT mode
·Press the speed button to adjust to the suitable working mode
·Connect lip hook and probe
·Coat the head of probe with a layer of conductive agent (toothpaste, etc.)
·Place the probe at the 1/3 position of the tooth neck.
Test the tooth and its adjacent tooth separately and compare the values when the patient feels tingling.
·Determine the pulp vitality based on comparative numerical analysis
Enable Working Length Control During Preparation When Connected To An Endo Motor
Connecting the Ai-pex to an Endo Motor that can be connected to Apex Locator allows real-time observation of the position of the file in the root canal during operation and activates many automatic functions (e.g. Auto Reverse).
Magnetic Adsorption Base
360° rotatable
The viewing angle of the screen can be adjusted, no backlighting.
Large Color Screen&Sound Recognition
3.8 inch LCD touch screen
Four-color display operation interface
It is clinically recommended to make the measurement to the 0.0 position and then manually subtract 0.5~1 mm to obtain the final working length.
Enable easier measurement.
When the length indicator bar reaches a digital number below 1.5, the machine intermittently emits low-frequency beeps.
The closer the tip is to the apical foramen, the quicker the sound is.
When the tip reaches the apical stop, the machine emits continuous high-frequency beeps.
The sound level can be adjusted as you wish.
Configurazione
Not autoclavable
Measuring wire (Soft texture, Long service life)
Autoclavabile
File clip × 4 (Coated with biological silica gel)
Lip hook × 5 (Made of medical-grade stainless steel)
Apex locator probe × 2
Pulp vitality probe × 2
Two Probes In Different Sizes Delivers More Convenient Operation Condition
The large 2.6 mm diameter probe can be used on teeth with unexposed pulp and placed at 1/3 of tooth neck for testing.
The small 0.5 mm diameter probe can be used on teeth with unexposed pulp and placed in the crown for testing, or on pulp-exposed teeth and placed at 1/3 of tooth neck for testing.
Environment temperature: + 5°C~ + 40°C
Relative humidity: 30%~75%
Atmosphere pressure: 70 kPa~106 kPa
